Wink Screen Play

Much like on the GPR with the new screen hardware I got the same kit from SF Moto for the Mito. Here's the bike with the gold screws that the PO had installed on it. A few of them had already vibrated off and since they didn't look right on this bike it was time to replace them with some proper blackness.



Here's the kit.



I like these kits however they do have some issues such as the plastic washers need trimming, and the rubber nuts are just long enough that you have to squish them to get them started on the screw.



Then they wind up and squish and are suppose to look like in this photo. However if you can't get your hand in the zone with enough force to squish the rubber nut then it wont start the threads. I had to pull the front piece off the Mito to get the front screw mounted.



The finished product–little soft on the focus so I'l have to get a better photos later.

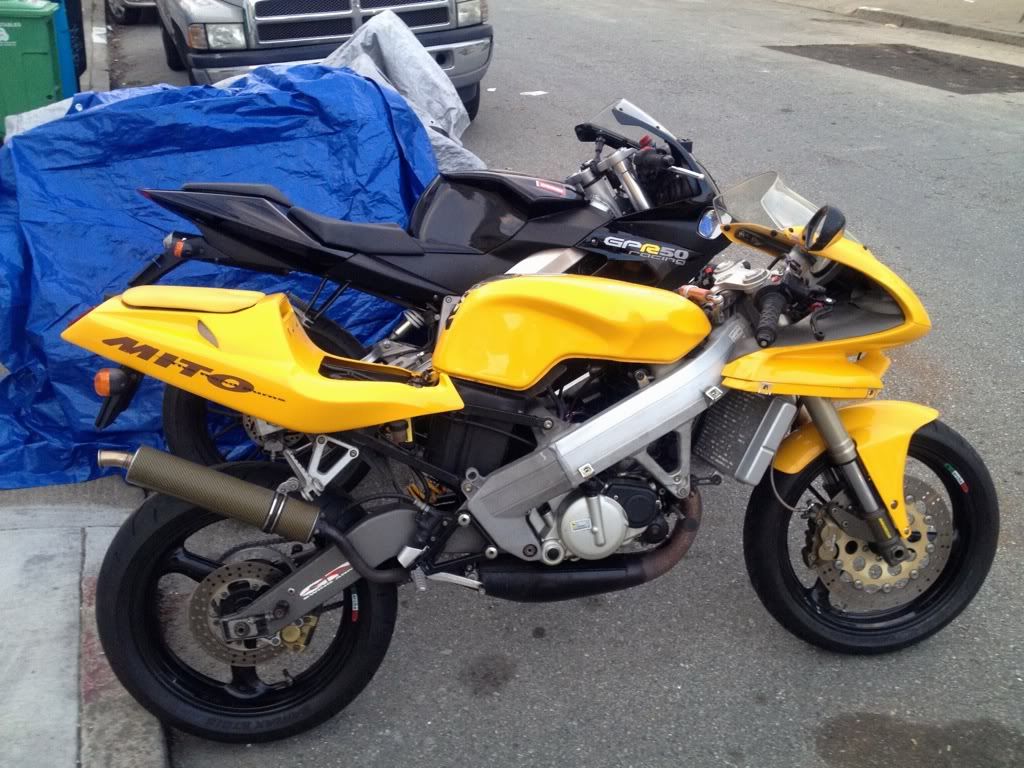

A couple of good looking stallions.

__________________
Now: '00 Derbi GPR 75, '87 Puch Monza Barcelona, '05 Wicked GPR, '95 Pika Mito, '07 Bol d'Or
Then: 1974 XR-75, DS-100, IT-175, MB-5(x2), CB400, CB750F, 750 Paso
Reply With Quote
  #22
Unread 01-07-2012, 04:38 AM
ToraTora's Avatar
ToraTora ToraTora is offline
Bats Rider

Join Date: Nov 2006
Location: San Francisco
Posts: 1,821
Wink Check the Clearance Clarence

I took the top end off the Mito today. All the parts look good–that was a relief. :P Once I had them out I fitted the wrist pin into the crank with the bearing and I couldn't feel any play ruling out that as the noise source. Then I got out the feeler gauges and pretty much convinced myself that I wasn't going to be able to properly check anything. Accepting that I packed up the cylinder and piston and took them to JP our local machine shop that understands strokers. He showed me some pretty interesting info about the Wiseco pistons. On what he calls the M-series pistons (what we buy for our Mitos and it would appear other stroker machines) have a code stamped into the top stating the bore in mm which the piston should run. In this case the piston I have has 853M05600. The 5600 translates into 56.00mm bore for this piston (I'd like to know what that 1290F indicates). Then if you are lucky enough to have the box (because they don't tell you this information on the piston specs page on their website) Wiseco lists the clearance between the piston and the cylinder. For this piston it is 0.051mm (most folks in the States still think in inches so the box actually lists that first 0.0020").

Checking the piston measured 90° off the wrist pin on the skirt and subtracting that from bore measured at the skirts (and well a bunch of places where he found that the cylinder didn't show much wear because it was the same at the lower skirts and other locations in the cylinder) there was a 0.2032mm (0.008") clearance. With feeler gauges I was only able to really get a .005" in there smoothly–I could get the .006" in and a .007" very tightly although it seemed more like a .005" showing to me that for this measurement feeler gauges are inaccurate and the wrong tool for the job (at least outside of just getting a ball park kind of check, and certainly not for a critical check).

Comparing this with what I found in the service manual where I read in a table that for a B cylinder (which mine is stamped) the proper piston size is 0.040 to 0.060mm with a wear limit of 0.100mm for the Mito EV, for the "racing" Mito (whatever that means) the numbers were slightly different with 0.038 to 0.062mm.

So doing a bit of math 0.060 plus 0.100 = 0.160mm, just a bit shy of the 0.2032mm measurement for my combo, and I think those numbers are for a non forged piston. Since the Wiseco is a forged piston that will expand more when warmed up having that 0.04mm of extra room should be okay. For the next test I'm going to put it all back together, let the engine warm up to operating temp and listen to what it does. If the sound goes away at operating temp then I'm going to run it. JP says that he's seen stroker engines with greater piston clearance run fine and that the forged pistons are strong pistons. Even still I'm finding the results of this math to be somewhat disconcerting. : /
